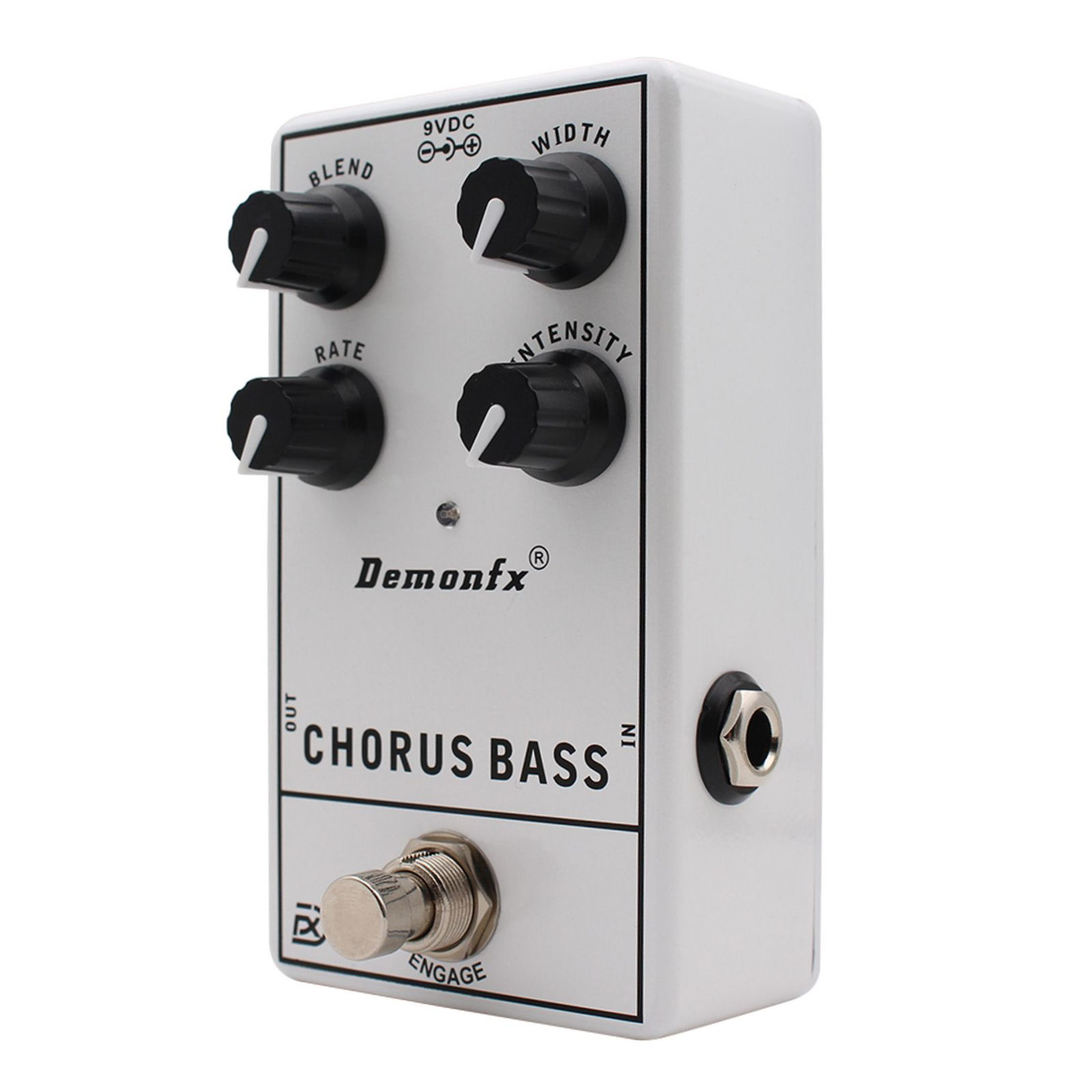

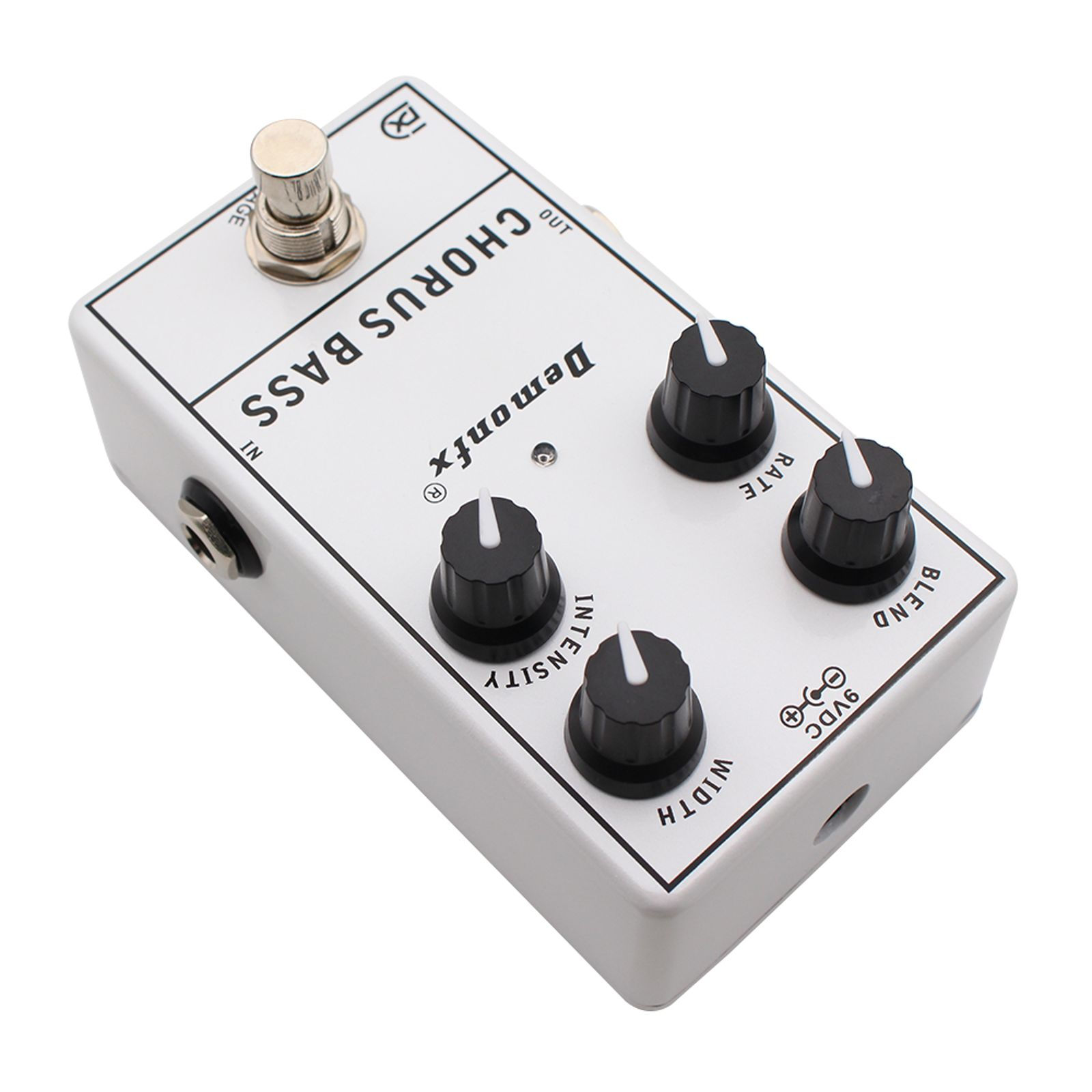

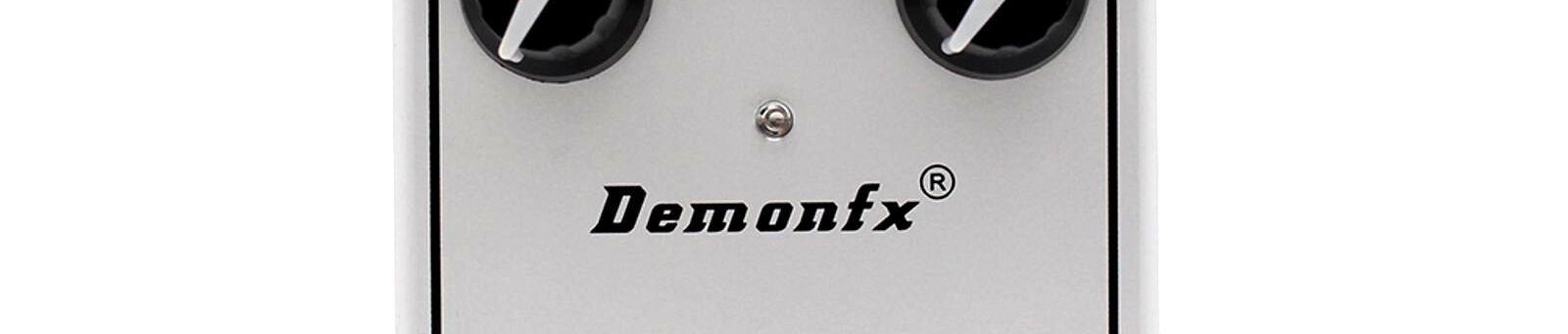

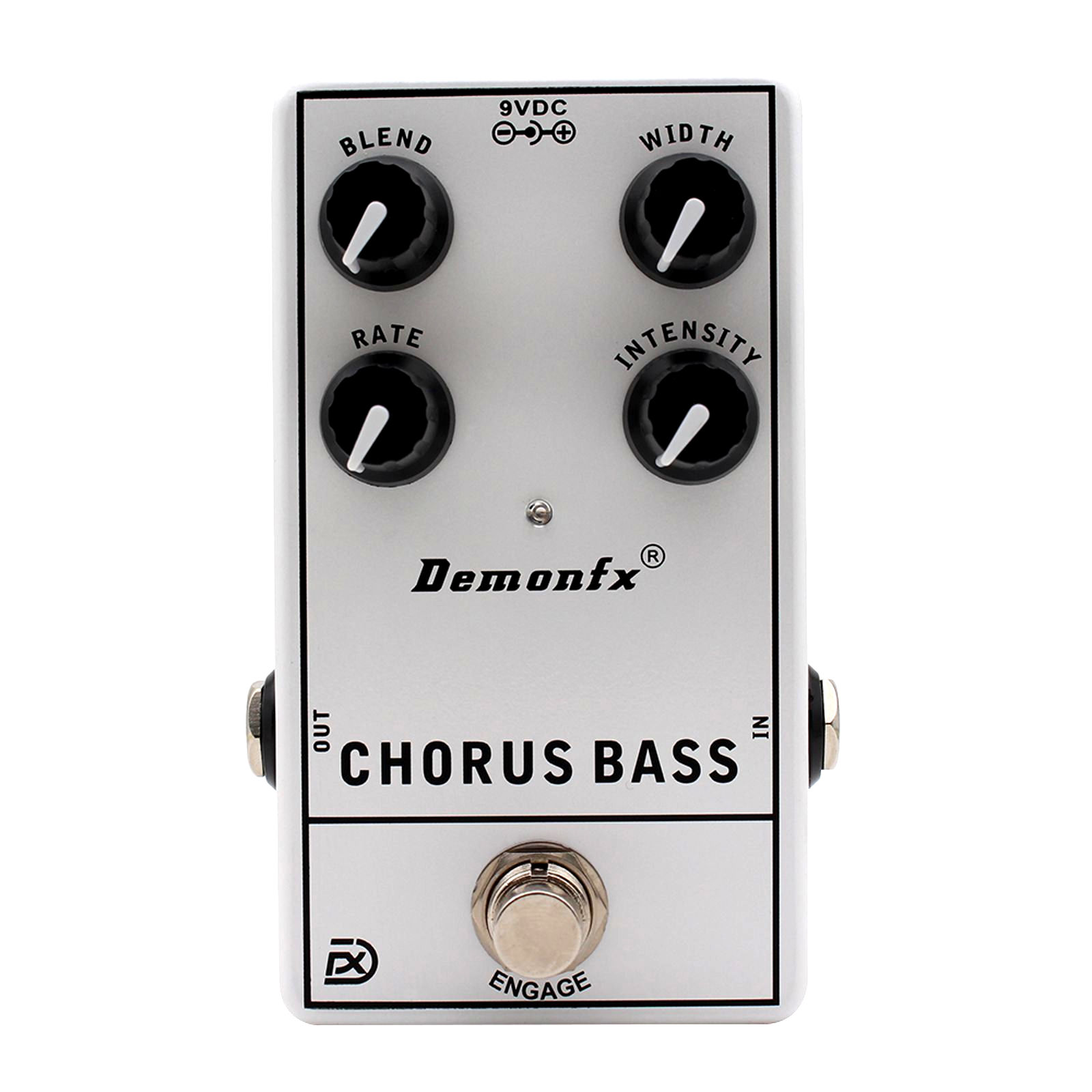

BASS CHORUS Based on Aguilar Chorusaurus

Combining  analog  bucket-brigade technology with the precision  and flexibility of modern circuits, the Chorus produces lush, organic chorusing effects that won’t compromise your low end. Using intuitive and flexible controls, bassists can dial in that perfect chorus effect.

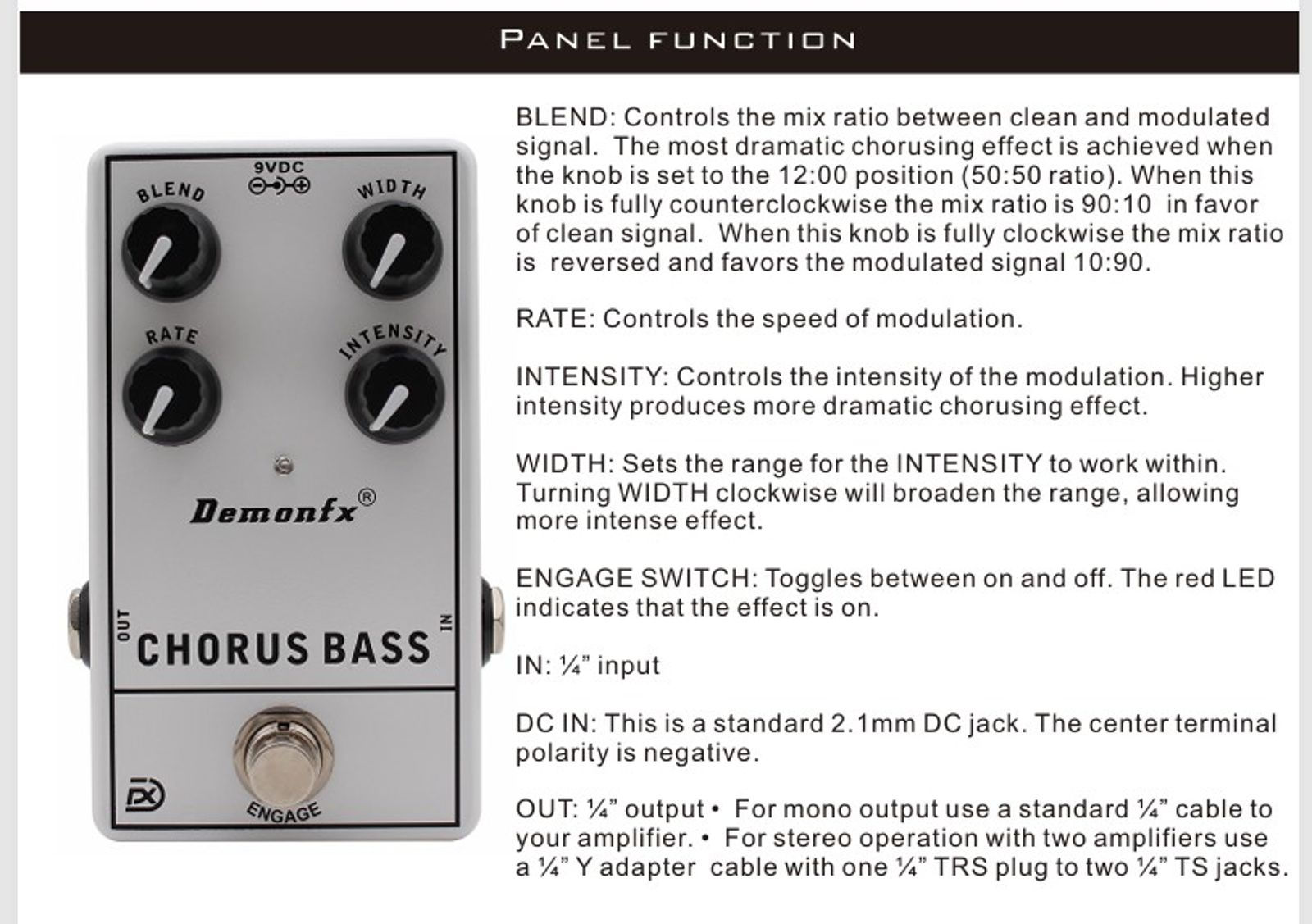

BLEND: Controls the mix ratio between clean and modulated signal.  The most dramatic chorusing effect is achieved when the knob is set to the 12:00 position (50:50 ratio). When this knob is fully counterclockwise the mix ratio is 90:10  in favor of clean signal.  When this knob is fully clockwise the mix ratio is  reversed and favors the modulated signal 10:90.

RATE: Controls the speed of modulation.

INTENSITY: Controls the intensity of the modulation. Higher intensity produces more dramatic chorusing effect.

WIDTH: Sets the range for the INTENSITY to work within. Turning WIDTH clockwise will broaden the range, allowing more intense effect.

ENGAGE SWITCH: Toggles between on and off. The red LED indicates that the effect is on.

IN: ¼” input

DC IN: This is a standard 2.1mm DC jack. The center terminal polarity is negative.

OUT: ¼” output •  For mono output use a standard ¼” cable to your amplifier. •  For stereo operation with two amplifiers use a ¼” Y adapter  cable with one ¼” TRS plug to two ¼” TS jacks.

Specifications:
Current consumption: 12mA
Input impedance: 1MΩ (Effect On)
Output impedance: 1 KΩ External
DC Power: 9VDC, center terminal negative   (Not Included)
Uses analog bucket-brigade technology
Independent adjustment of all chorus effect parameters
True bypass
Weight: 320g
Dimensions: 120*66*50MM

Note:
Power supply not included.
Please use the 9V power adapter whose polarity is negative center otherwise, the product may not work properly.

• Package List:
  1 * Effect Pedal
  1 * User Manual (English)
• 1 * Year warranty through our store
•
