Description

MOSKY AG BASS Preamp Bass Guitar Preamp DI Effect Pedal With Headphone out Aguilar Clone

• Revered for its tight, fast response and wide tonal exibility, the AG preamp takes the beloved AG sound and places it in a compact pedal. The AG preamp features a 4-band EQ and foot-switchable broadband “deep” and “bright” controls for added depth and presence. Its 18-volt operation provides plenty of headroom ensuring your sound stays clean and transparent. It also features a built-in headphone out and aux in, for silent practicing, as well as a DI with pre/post and ground lift controls. The AG preamp is a must-have for any bassist looking for a clean and transparent preamp with all the controls needed for sculpting their sound.

  Features:

  • Analog preamp circuit inspired from the AG 700 amplier

  • 4-band EQ with treble, bass, low midrange, and high midrange controls

  • Foot-switchable, broadband “Bright” and “Deep” EQ controls

  • DI out with pre/post and ground lift controls

  • 1/8” aux-in and 1/8” headphone out for silent practice

  • Three-year limited warranty

  Functions

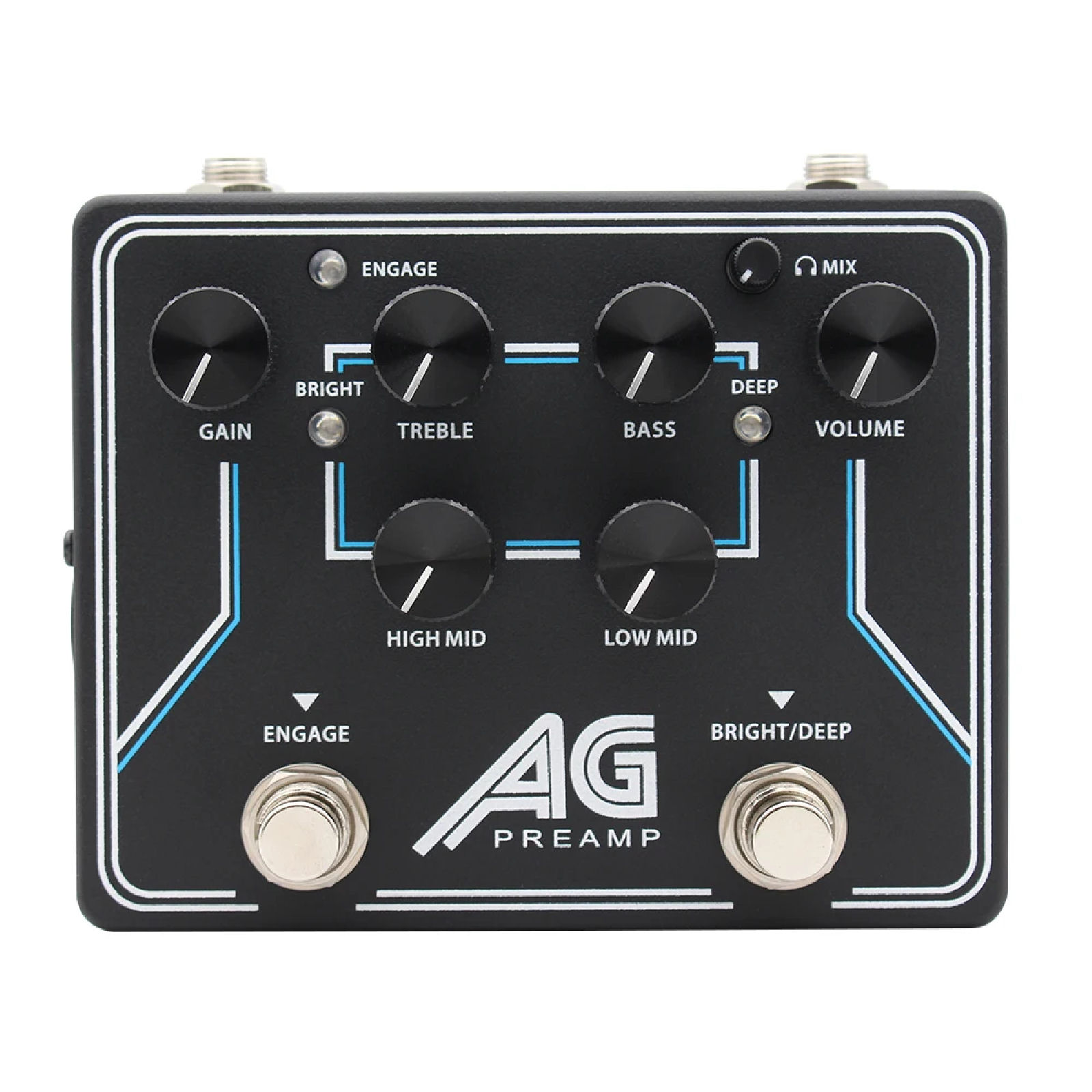

  A. Top Panel:

  Gain – Controls input sensitivity level

  Treble – +/- 14 dB @ 4 kHz

  Bass – +/- 17 dB @ 40 Hz

  High Mid – +/- 14dB @ 800 Hz

  Low Mid – +/- 15 dB @ 300 Hz

  Volume – Controls output level

  Engage – Toggles between on/bypass (blue LED indicates on)

  Bright/Deep – Toggles through broadband “Deep”, “Bright”, or “Deep + Bright” (blue LED indicates on) The

  frequencies for the boosts are:

  Deep: +6 dB <250 Hz, shelving Bright: +6 dB >3 kHz, shelving

  Headphone Mix – Controls mix of bass signal and aux-in in headphones

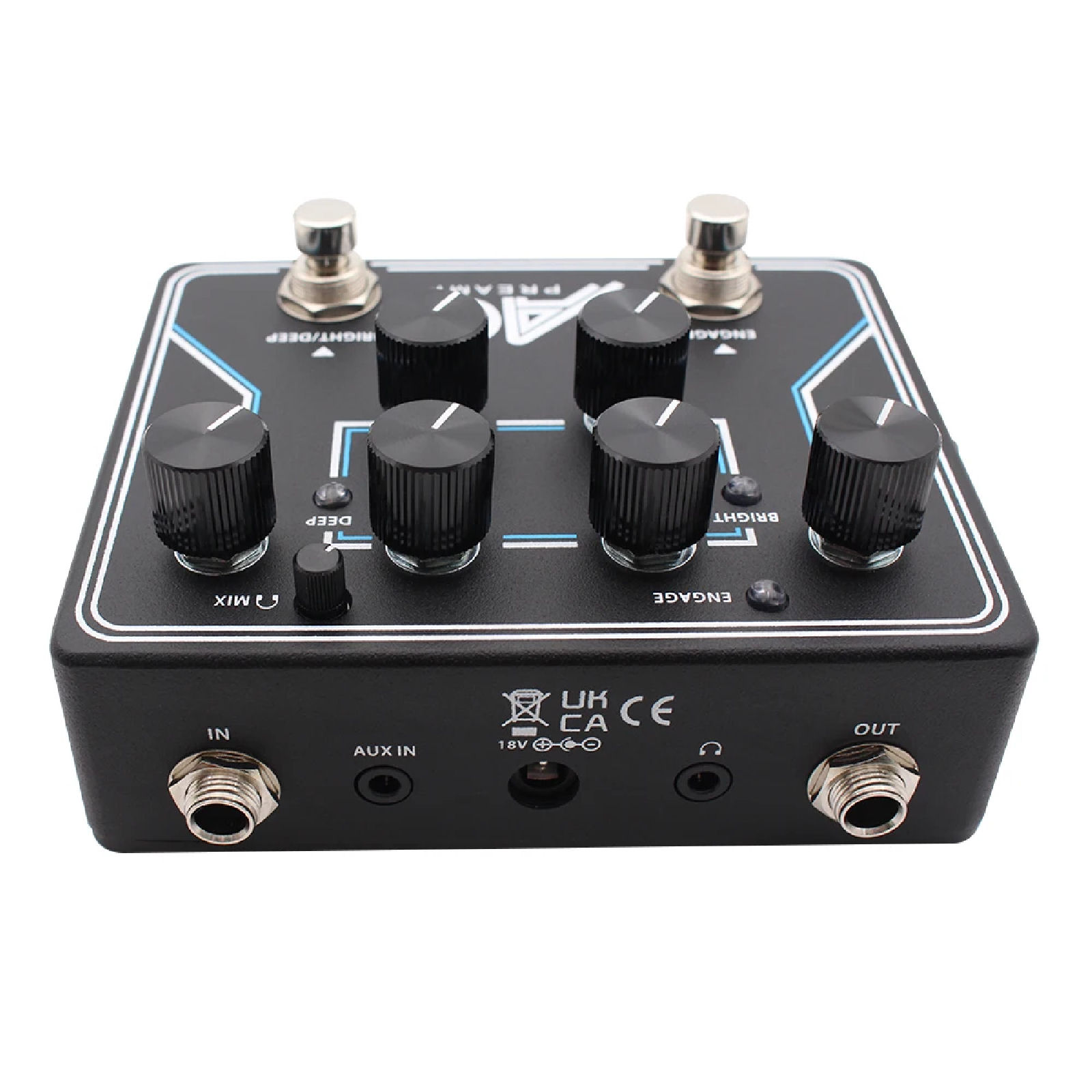

  B. Top Side Panel:

  In: 1/4” input

  Aux In: 1/8” aux input for music device

  Out: 1/4” output

  Headphones Out: 1/8” headphones output

  DC IN: 18v. This is a standard 2.1mm DC jack. The center terminal polarity is negative.

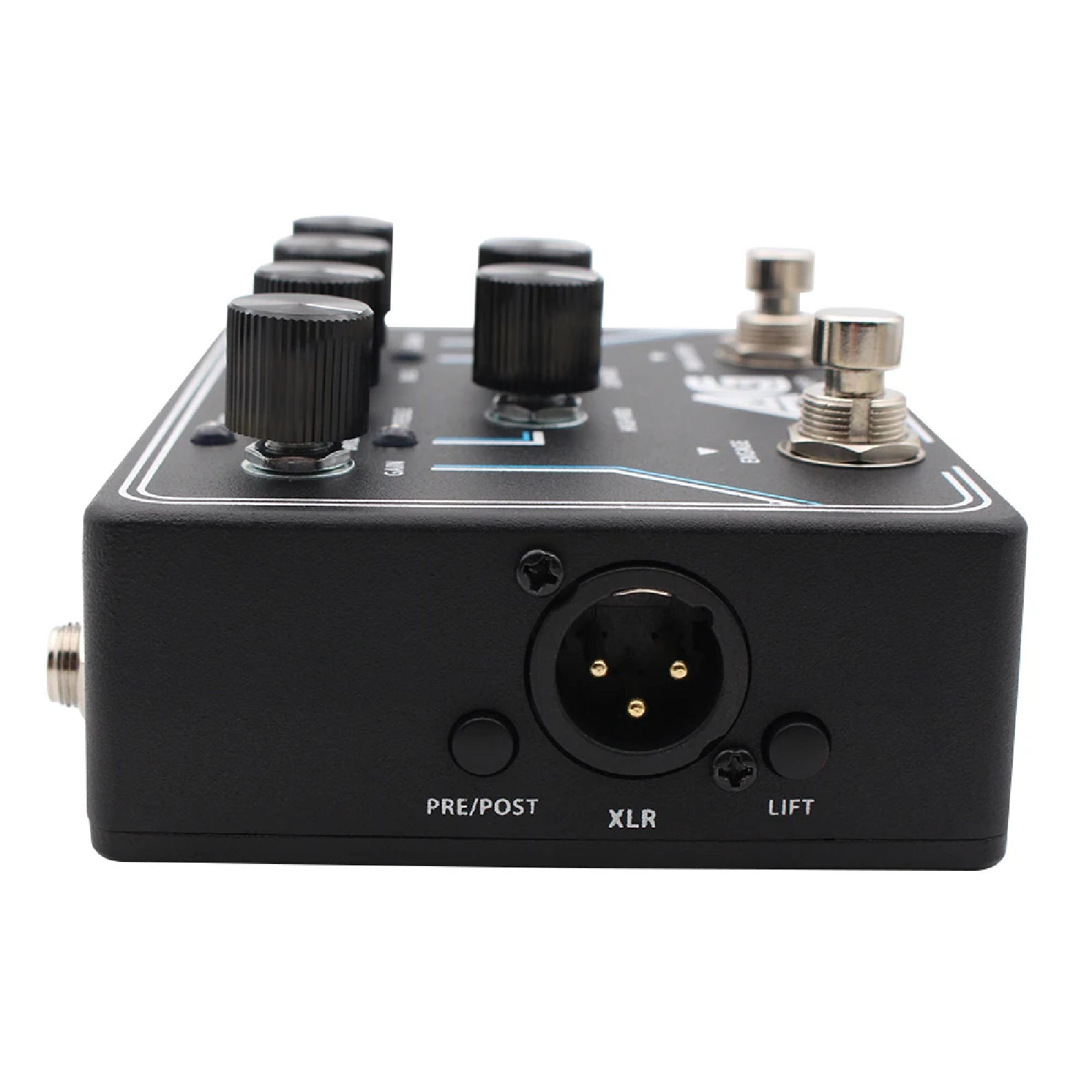

  C. Left Side Panel:

  DI Out: XLR balanced DI out

  Pre/Post Control:

  Pre: Your signal goes to the D.I. XLR output before your Gain and EQ settings

  Post: Gain, EQ, and Master settings will be sent to the D.I. XLR output jack.

  Ground Lift Control: If there is a hum when using the D.I, there may be a ground loop. In many cases, pushing in the Ground/Lift button can x this problem

  D. Specifications:

  Current consumption:……………………….. 36 mA

  Input impedance: ……………………………………1mega Ohm

  Output impedance: …………………………………..1k

  External DC Power: ………………………9V-18V DC

  E. Headphone out:

  The AG Preamp features a headphone out for silent practice. Use the Aux-In 1/8” for connecting your laptop, phone, or audio source and the Headphone Out 1/8” out for your headphones. To adjust the overall headphone volume, use the main Volume control. To adjust the balance of your aux-in to headphone mix, use the Headphone Mix control just above the Volume control

  • Note:
    Power supply not included.
    Please use a 9V – 18V DC power adapter whose polarity is negative center otherwise, the product may not work properly.

    Package List:
    1 * Effect Pedal


    1 * User Manual  (English )

  • 1 * Year warranty through our store

Package List:

• 1 * Effect Pedal
  1 * User Manual ( English )
• 1 * Hardcover Box

• 1 * Year warranty through our store

No Duty to Canada and USA

• *****MY PRICE INCLUDES ALL TARIFFS******
•  FAST N’ FREE USA Shipping  (typically about 5 or so days via UPS Mail Innovations and USPS GROUND ADVANTAGE Final Mile LAST MILE TRACKING)
• We Ship from our warehouse in Canada  (NOT from an Amazon warehouse and NOT rejects or returns, in fact we never re-sell returns ‘ That’s what PAWN Shops are 4)
•  Ships from Canada



• *Just to be clear on DUTY, (regardless of of any warnings to buyers of ) The United States-Mexico-Canada Agreement (USMCA is in place that allows US citizens to purchase/import in to the United States from Canada with NO Duty at all, State taxes are another story, some states charge a TAX some do not, BUT NO duty. on OUR site NO State/Province taxes either.
• To our USA Customers We ship DDP meaning DUTY +Tariffs PRE paid by us to our shipper .
• ( NOTHING TO PAY AT THE DOOR )
• **Final thought. Please shop responsibly, every purchase you make from a North American seller helps OUR economy on THIS Continent.
