Description

Fanmuzk SGA Bass Preamp Pedal Direct Box Highly Flexible Tone Headphone Out AUX Designed by DemonFx

Fanmuzk SGA Bass Preamp Pedal Direct Box Highly Flexible Tone With a Headphone Out And Aux-In

Top Panel:

• Gain – Controls input sensitivity level
• Treble – +/- 14 dB @ 4 kHz
• Bass – +/- 17 dB @ 40 Hz
• High Mid – +/- 14dB @ 800 Hz
• Low Mid – +/- 15 dB @ 300 Hz
• Volume – Controls output level
• Engage – Toggles between on/bypass (blue LED indicates on)
• Bright/Deep – Toggles through broadband “Deep”, “Bright”, or “Deep + Bright” (blue LED indicates on) The frequencies for the boosts are:
• Deep: +6 dB <250 Hz, shelving Bright: +6 dB >3 kHz, shelving
• Headphone Mix – Controls mix of bass signal and aux-in in headphones

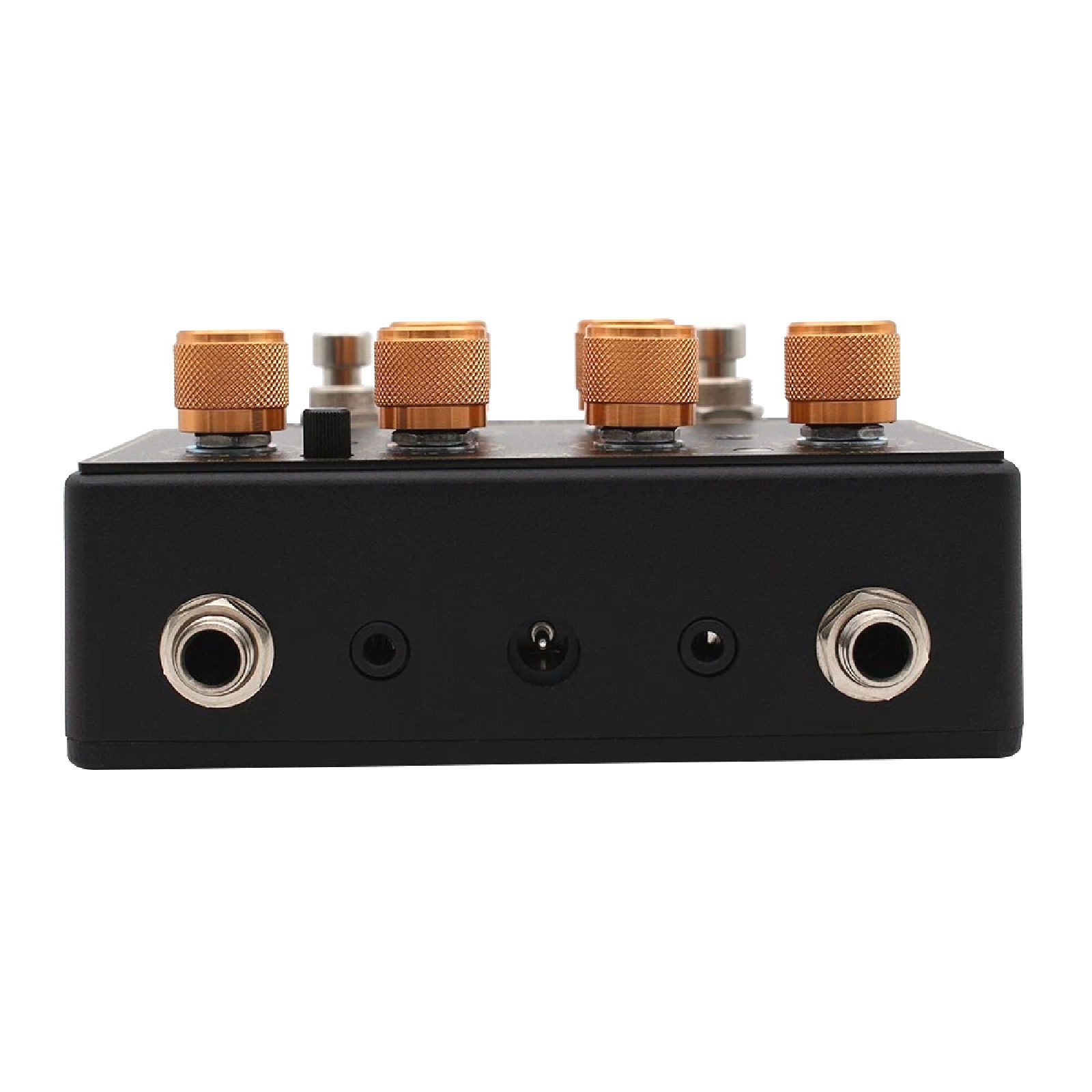

• 2. Top Side Panel:
• In: 1/4” input
• Aux In: 1/8” aux input for music device
• Out: 1/4” output
• Headphones Out: 1/8” headphones output
• DC IN: 18v. This is a standard 2.1mm DC jack. The center terminal polarity is negative.

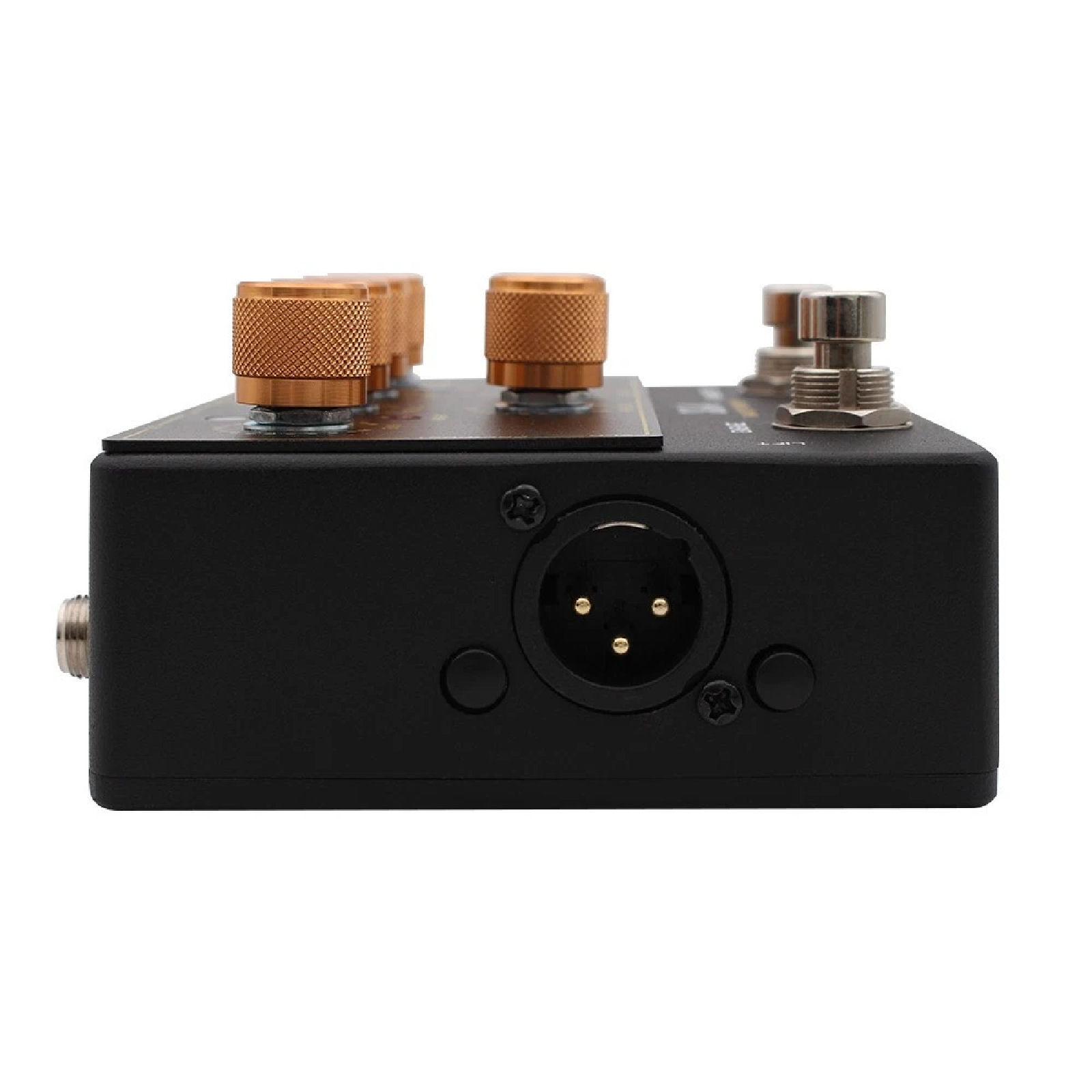

• 3. Left Side Panel:
• DI Out: XLR balanced DI out

Pre/Post Control:

 Pre: Your signal goes to the D.I. XLR output before your Gain and EQ settings

 Post: Gain, EQ, and Master settings will be sent to the D.I. XLR output jack.

Ground Lift Control: If there is a hum when using the D.I, there may be a ground loop. In many cases,

pushing in the Ground/Lift button can fix this problem.

Every effect pedal has been tested carefully before delivery, it’ll never let you down.

Specifications
Current consumption:……………………….. 36 mA

Input impedance: ……………………………………1mega Ohm

Output impedance: …………………………………..1k

External DC Power: ………………………18v DC

Clean and transparent Preamp

4-Band EQ – Bass, Treble, Low Mid, Hi Mid

Footswitchable “Deep” and “Bright” broadband boost

Headphone out and Aux in for silent practice

Studio Quality DI w/ Pre and Post as well as Ground Lift

Power: 18v power supply-center negative (not included)

Inputs: One 1/4″ jack, One Aux In

Outputs: One 1/4″ jack, One XLR (nominal output – 14 dBu balanced), Headphone Out

Package included: only the pedal

Note: Power Adapter is not included.

Please use the quality standard 18V effects power adapter whose polarity is negative center, otherwise, the product may not work properly.

The power source is important. Please use a quality power source or brand power adapter. Poor power adapter will make effects noises.

Note:
Power supply not included.
Please use a 18V DC power adapter whose polarity is negative center otherwise, the product may not work properly.

Package List:
1 * Effect Pedal
1 * User Manual ( English )
1 * Year warranty through our store

Package List:

• 1 * Effect Pedal
  1 * User Manual ( English )
• 1 * Hardcover Box

• 1 * Year warranty through our store
